AI Axis Centrifugal Pumps 20 (185 gph) full image view

AI Axis Centrifugal Pumps

by AquaIllumination
$99.99
Flow Rate

Notify me when back in stock

Why Buy From Us?

🚛 Free Shipping On All Orders

Don't worry about shipping costs. We prioritize customer satisfaction from start to finish.

☑️ 30-Day No Stress Returns

Why stress when you're covered by our 30-Day No Stress Returns Policy!

💲 Price Beat Guarantee

Found a product cheaper elsewhere online? Let us know! We'll match or beat it.

Call us to get a great price! (800)518-0141

AI Axis Centrifugal Pumps: Precision Control for Your Aquarium

Elevate Your Aquarium Flow Dynamics with the AI Axis Centrifugal Pumps

AI Axis centrifugal pumps redefine aquarium water flow management. These innovative pumps offer wireless control, programmable schedules, and quiet operation, previously only available in larger, more expensive models. With three size options, the Axis 20, Axis 40, and Axis 90, you can find the perfect fit for your aquarium needs.

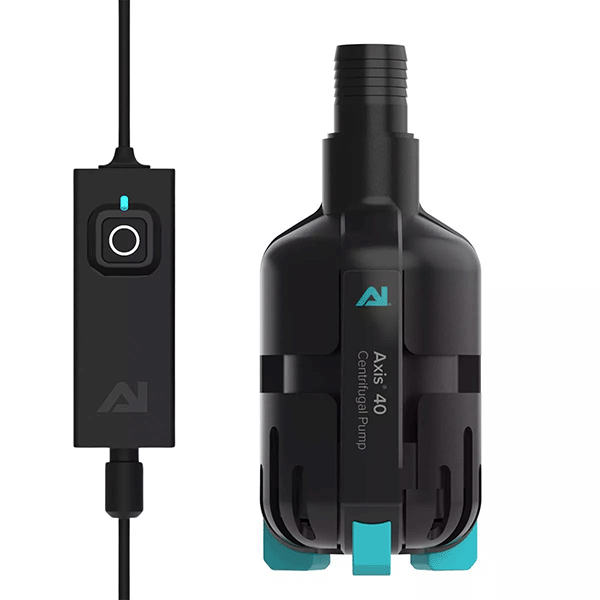

AI Axis Centrifugal Pumps 40 (400 gph) with controller

Key Features & Benefits of the AI Axis Centrifugal Pumps:

  • Smart Control: Effortlessly manage your pumps with the myAI or Mobius app, or integrate them with Apex Fusion using the MXM module.
  • Programmable Modes: Customize flow schedules, activate feed modes, and calibrate pump output to match your aquarium's unique requirements.
  • Quiet Operation: The DC motor ensures whisper-quiet performance, creating a peaceful environment for your aquatic life.
  • Back-Siphon Prevention: The calibration feature prevents back-siphoning during power outages or feed modes, ensuring a smooth and bubble-free restart.
  • Coordinate Control: Easily control all your AI pumps simultaneously with the touch of a button.

AI Axis Centrifugal Pumps 40 (400 gph) side view

Axis 20 Specifications:

  • Dimensions: 2.125" Diameter x 5.5" Tall
  • Max Head: ~5ft (1.5m)
  • Flow Rate: ~185 GPH (700lph)
  • Power Consumption: Variable, 12W max
  • Recommended Tank Size: Up to 15 gallons
  • Barbed Output Nozzle Sizes: 0.5" (12mm) | 0.625" (16mm)

AI Axis Centrifugal Pumps 20 (185 gph) dimensions

Axis 40 Specifications:

  • Dimensions: 2.44" Diameter x 6.625" Tall
  • Max Head: ~9ft (2.8m)
  • Flow Rate: ~400 GPH (1500lph)
  • Power Consumption: Variable, 20W max
  • Recommended Tank Size: Up to 40 gallons
  • Barbed Output Nozzle Sizes: 0.625" (16mm) | 0.75" (20mm)

AI Axis Centrifugal Pumps 40 (400 gph) dimensions

Axis 90 Specifications:

  • Dimensions: 2.91" Diameter x 7.75" Tall
  • Max Head: ~10ft (3m)
  • Flow Rate: ~925 GPH (3500lph)
  • Power Consumption: Variable, 40W max
  • Recommended Tank Size: Up to 90 gallons
  • Barbed Output Nozzle Sizes: 0.75" (20mm) | 1.0" (25mm)

AI Axis Centrifugal Pumps 90 (925 gph) dimensions

What's Included:

  • Axis Centrifugal Pump (corresponding model)
  • Barbed Output Nozzles (as specified for each model)
  • Power Supply

Unlock the full potential of your aquarium's water flow with the precision and control of AI Axis Centrifugal Pumps.

AI Axis Centrifugal Pumps: Precision Control for Your Aquarium

Elevate Your Aquarium Flow Dynamics with the AI Axis Centrifugal Pumps

AI Axis centrifugal pumps redefine aquarium water flow management. These innovative pumps offer wireless control, programmable schedules, and quiet operation, previously only available in larger, more expensive models. With three size options, the Axis 20, Axis 40, and Axis 90, you can find the perfect fit for your aquarium needs.

AI Axis Centrifugal Pumps 40 (400 gph) with controller

Key Features & Benefits of the AI Axis Centrifugal Pumps:

  • Smart Control: Effortlessly manage your pumps with the myAI or Mobius app, or integrate them with Apex Fusion using the MXM module.
  • Programmable Modes: Customize flow schedules, activate feed modes, and calibrate pump output to match your aquarium's unique requirements.
  • Quiet Operation: The DC motor ensures whisper-quiet performance, creating a peaceful environment for your aquatic life.
  • Back-Siphon Prevention: The calibration feature prevents back-siphoning during power outages or feed modes, ensuring a smooth and bubble-free restart.
  • Coordinate Control: Easily control all your AI pumps simultaneously with the touch of a button.

AI Axis Centrifugal Pumps 40 (400 gph) side view

Axis 20 Specifications:

  • Dimensions: 2.125" Diameter x 5.5" Tall
  • Max Head: ~5ft (1.5m)
  • Flow Rate: ~185 GPH (700lph)
  • Power Consumption: Variable, 12W max
  • Recommended Tank Size: Up to 15 gallons
  • Barbed Output Nozzle Sizes: 0.5" (12mm) | 0.625" (16mm)

AI Axis Centrifugal Pumps 20 (185 gph) dimensions

Axis 40 Specifications:

  • Dimensions: 2.44" Diameter x 6.625" Tall
  • Max Head: ~9ft (2.8m)
  • Flow Rate: ~400 GPH (1500lph)
  • Power Consumption: Variable, 20W max
  • Recommended Tank Size: Up to 40 gallons
  • Barbed Output Nozzle Sizes: 0.625" (16mm) | 0.75" (20mm)

AI Axis Centrifugal Pumps 40 (400 gph) dimensions

Axis 90 Specifications:

  • Dimensions: 2.91" Diameter x 7.75" Tall
  • Max Head: ~10ft (3m)
  • Flow Rate: ~925 GPH (3500lph)
  • Power Consumption: Variable, 40W max
  • Recommended Tank Size: Up to 90 gallons
  • Barbed Output Nozzle Sizes: 0.75" (20mm) | 1.0" (25mm)

AI Axis Centrifugal Pumps 90 (925 gph) dimensions

What's Included:

  • Axis Centrifugal Pump (corresponding model)
  • Barbed Output Nozzles (as specified for each model)
  • Power Supply

Unlock the full potential of your aquarium's water flow with the precision and control of AI Axis Centrifugal Pumps.

Here's what you can expect with our Angel Aquariums free shipping policy:

  • Effortless Ordering: Place your order and leave the delivery to us!

  • Fast Processing: We typically process orders within 1-2 business days.

  • Standard Shipping Speed: Expect your item(s) to arrive within 3-7 business days after processing.

  • Convenient Tracking: We'll send you a shipment notification with tracking information so you can follow your aquarium's journey to your doorstep.

  • Order Confirmation: Double-check everything! We'll send you a confirmation email after you place your order. Please review it for accuracy and let us know if you have any questions.

Shop with Confidence - Free Returns on Everything!

We understand that shopping online can sometimes mean uncertainty about sizing or fit. That's why we offer free returns on every single purchase, taking the worry out of your shopping experience. If anything isn't perfect, return it for free – no questions asked!

Here's why choosing us with our free return policy is the best:

  • Reduced Risk – Shop freely! Knowing you can return anything for free means you can shop worry free.
  • Peace of Mind – Stress-Free Shopping! Focus on finding the perfect items, we'll handle any returns if needed, ensuring a smooth shopping experience.
  • Shop Smarter, Not Harder! Our free return policy allows you to shop more efficiently, saving you time and money on unnecessary exchanges.

At Angel Aquariums our customers are always first

Here's what sets us apart:

  • Hassle-Free Returns: Enjoy a 30-day easy return policy for peace of mind.
  • Price Beat Guarantee: Found a product cheaper elsewhere online? Let us know! We'll match or beat it.

  • Free Shipping on all orders: We bring the convenience to you, for free (within the contiguous US)!

What is an aquarium water pump?

An aquarium water pump is a device that circulates water within an aquarium. It is essential for creating water movement, oxygenating the water, and supporting filter systems.

Why should i use a water pump?

  • Water circulation: Prevents stagnant water areas and improves oxygen levels.
  • Filter support: Drives water through filters for efficient waste removal.
  • Powerhead function: Can be used to create water currents and simulate natural environments.
  • Equipment operation: Provides water flow for other aquarium equipment like protein skimmers or canister filters.

How do i choose the right water pump?

  • Tank size: Select a pump with appropriate flow rate for your aquarium.
  • Pump head pressure: Ensure the pump can lift water to the desired height.
  • Energy efficiency: Consider the pump's power consumption.
  • Noise level: Choose a pump with a quiet operation.

Flow Rate:

The pump should be able to circulate the entire volume of water in the tank 3–5 times per hour. For example, a 75-gallon reef tank would need a flow rate of 225–375 gallons per hour (GPH). For fish-only tanks, some recommend a flow rate of 10–12 times the tank's water volume, while mixed reef tanks and SPS tanks may need 15–20 times and 20–25 times, respectively.

Head pressure:

The pump will need to operate against a certain amount of pressure, which can be calculated by adding 1 foot of head pressure for each vertical foot, elbow, and every 10 feet of horizontal pipe. For example, if water needs to be pumped 4 feet vertically, through 2 elbows, and 10 feet horizontally, the pump will be under about 7 feet of head pressure.

What kind of maintenance should i expect?

  • Regular cleaning: Remove debris from the pump intake and impeller.
  • Impeller inspection: Check for wear and tear on the impeller.
  • Shaft inspection: Inspect the pump shaft for damage or corrosion.
